RO 2000kg Water Treatment Equipment SSW 5000L / Hour Stainless Steel
Ask Latest Price
Brand Name:Sunswell
Model Number:SSW
Price:USD 30000 per Set
Payment Terms:L/C, T/T
Supply Ability:10 Set/Sets per Month
Delivery Time:40 days
Company Data
Verified Supplier
Contact Person
Howie Sun
Business Type:
Manufacturer Exporter Seller
Officials:
Dongli Road, Donglai, Zhangjiagang, Jiangsu 215600, China
Quality:
Quality Certifitation Available
Visit Website
Product Details
Company Profile
Product Details
Products Description
Introduction
Water treatment system is widely used in preparation of water for beverage industry, which features adaptable of different salt content of water, easy operation, less labor force and low running cost.
Flow Chart
Raw Water→Raw Water Tank→Raw Water Pump→Mechanical Filter(quartz sand filter)→Active Carbon Filter→Ion
Exchanger(optional)→Precision Filter→High-pressure Pump→1-stage RO System→ozone sterilization→ Pure Water Tank →Pure Water Pump→Final Filter(optional)→distilled water equipment(optional)→ultraviolet sterilization(optional)→water point.
Exchanger(optional)→Precision Filter→High-pressure Pump→1-stage RO System→ozone sterilization→ Pure Water Tank →Pure Water Pump→Final Filter(optional)→distilled water equipment(optional)→ultraviolet sterilization(optional)→water point.
Composition
Pre-treatment System
Pre-treatment system is composed of mechanical filter, active carbon filter, Ion Exchanger and precision filter. The water
temperature requires 25±30C.
Pre-treatment system is composed of mechanical filter, active carbon filter, Ion Exchanger and precision filter. The water
temperature requires 25±30C.

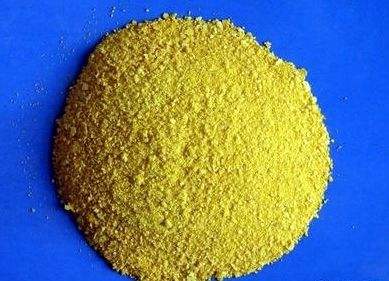

Flocculator is used for destroying electro-neutral of colloid in water, which ensures raw water can reach to the requirement of Silt Density Index (SDI) ≤ 4. Mechanical filter can remove most of suspension, colloid and grain impurity, which can ensure initial purification of water.
If some of raw water comes from tap water, chlorine content maybe is higher. Low-pressure compound RO membrane has strict limitation to chlorine and organism, which must be ≤0.1mg/1.
Because calcium and magnesium content in raw water is very high, and RO salt-removing rate is about 97%, which may cause deposit of calcium carbonate, magnesium carbonate, bitter salt, etc. on concentrated water side. Deposit adhered on RO membrane surface and may block passage of components and causes pressure difference increase, water output decrease and salt-removing rate decrease, which influence normal running and usage span of RO. So before precision filter, Ion Exchanger is equipped to protect and avoids impurity on RO concentrated water side.
RO System
RO system is composed of high-pressure pump, RO system and chemical cleaning device.
During running, RO membrane may form some deposit and chemical cleaning device is equipped for periodical cleaning to ensure stable running of RO system. This system configures with membrane compounds and high-pressure pump.
High-pressure pump is the power source of RO system. To RO system on sound running condition, high-pressure pump equips inlet/outlet pressure switch. When inlet pressure is less than set value (water lack P≤0.05Mpa) or outlet pressure is higher than set value, pressure switch send signal to PLC programming system and high-pressure pump and RO system will stop in avoidance of destroying to RO membrane because of water pressure.
RO system pressure control and automatic cleaning are controlled by PLC. RO system can wash surface of RO membrane by low-pressure timely and periodically.
If some of raw water comes from tap water, chlorine content maybe is higher. Low-pressure compound RO membrane has strict limitation to chlorine and organism, which must be ≤0.1mg/1.
Because calcium and magnesium content in raw water is very high, and RO salt-removing rate is about 97%, which may cause deposit of calcium carbonate, magnesium carbonate, bitter salt, etc. on concentrated water side. Deposit adhered on RO membrane surface and may block passage of components and causes pressure difference increase, water output decrease and salt-removing rate decrease, which influence normal running and usage span of RO. So before precision filter, Ion Exchanger is equipped to protect and avoids impurity on RO concentrated water side.
RO System
RO system is composed of high-pressure pump, RO system and chemical cleaning device.
During running, RO membrane may form some deposit and chemical cleaning device is equipped for periodical cleaning to ensure stable running of RO system. This system configures with membrane compounds and high-pressure pump.
High-pressure pump is the power source of RO system. To RO system on sound running condition, high-pressure pump equips inlet/outlet pressure switch. When inlet pressure is less than set value (water lack P≤0.05Mpa) or outlet pressure is higher than set value, pressure switch send signal to PLC programming system and high-pressure pump and RO system will stop in avoidance of destroying to RO membrane because of water pressure.
RO system pressure control and automatic cleaning are controlled by PLC. RO system can wash surface of RO membrane by low-pressure timely and periodically.
Details Images
Quartz Sand Filter
Raw water into the filter for a simple mechanical filter, mainly to remove suspended solids in water, colloidal particles and other large impurities in the water when the water pressure and the pressure difference over 10Psi (0.7kg/cm2) or water SDI> 5,the need for backwashing . In general, before running back wash once a day.
Activated Carbon Filter
It has a very large number of pores and specific surface area, which has a strong physical adsorption capacity, the effective adsorption of organic pollutants in water. Primarily to remove organic matter in raw water, chlorine, odor, color, etc., so that the original residual chlorine in water ≤ 0.1mg / l, effective protection of RO membrane from chlorine damage to parts of activated carbon
Water Softer
The sodium ion exchange softening is used to remove water calcium and magnesium ions , preparation of demineralized water of ion exchange . The composition of the water hardness , calcium, magnesium , and softening in the ion exchange resin to exchange the water calcium and magnesium ions by sodium ion exchange , so that the water is not easy to form carbonate scale and sulfate scale,resulting in softened water.
Precision Filter
The precision filter, also known as cartridge filter housing, is used to prevent impurities like particles from entering high pressure pump and reverse osmosis membrane module. The filtration precision ranges form 0.10μm to 60μm and it is free from influences feed pressure fluctuation.
RO Main Machine
This system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles, organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.

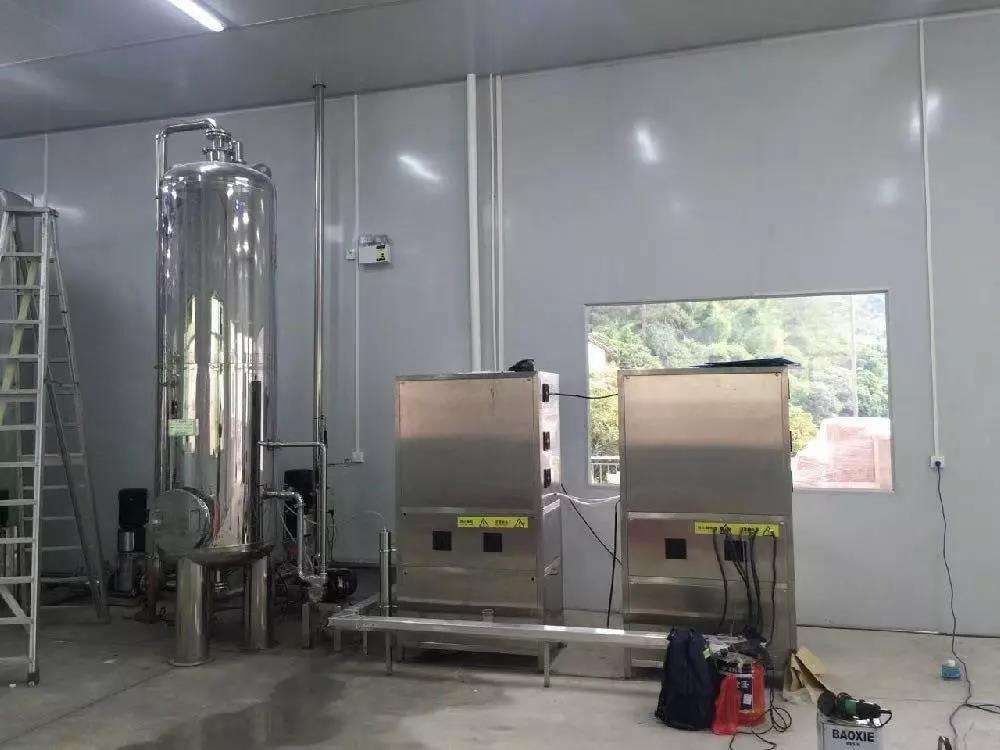

Ozone Mixing Tower and Generator
Ozone generator is used to produce ozone and provide raw materials for mixing tower. The ozone mixing tank is a kind of water treatment equipment. It is to fully mix water and ozone, thus achieving purposes of sterilization, retaining freshness and avoiding secondary pollution for the producing of mineral pure water.
